Introduction

When Kotlin compile a class with lambda inline to JVM bytecode, kotlin compiler backend will generate a INSTANCE field in generated bytecode. Such as :

import java.util.*
import kotlinx.coroutines.*

class KotlinLambdaInline {
  var sink: Long = 0

  fun doCalc(addfn: (a: Long, b: Long) -> Long): Long {
    return addfn(123L, 456L)
  }

  fun foo() {
    sink = doCalc { a: Long, b: Long -> a + b }
  }
}

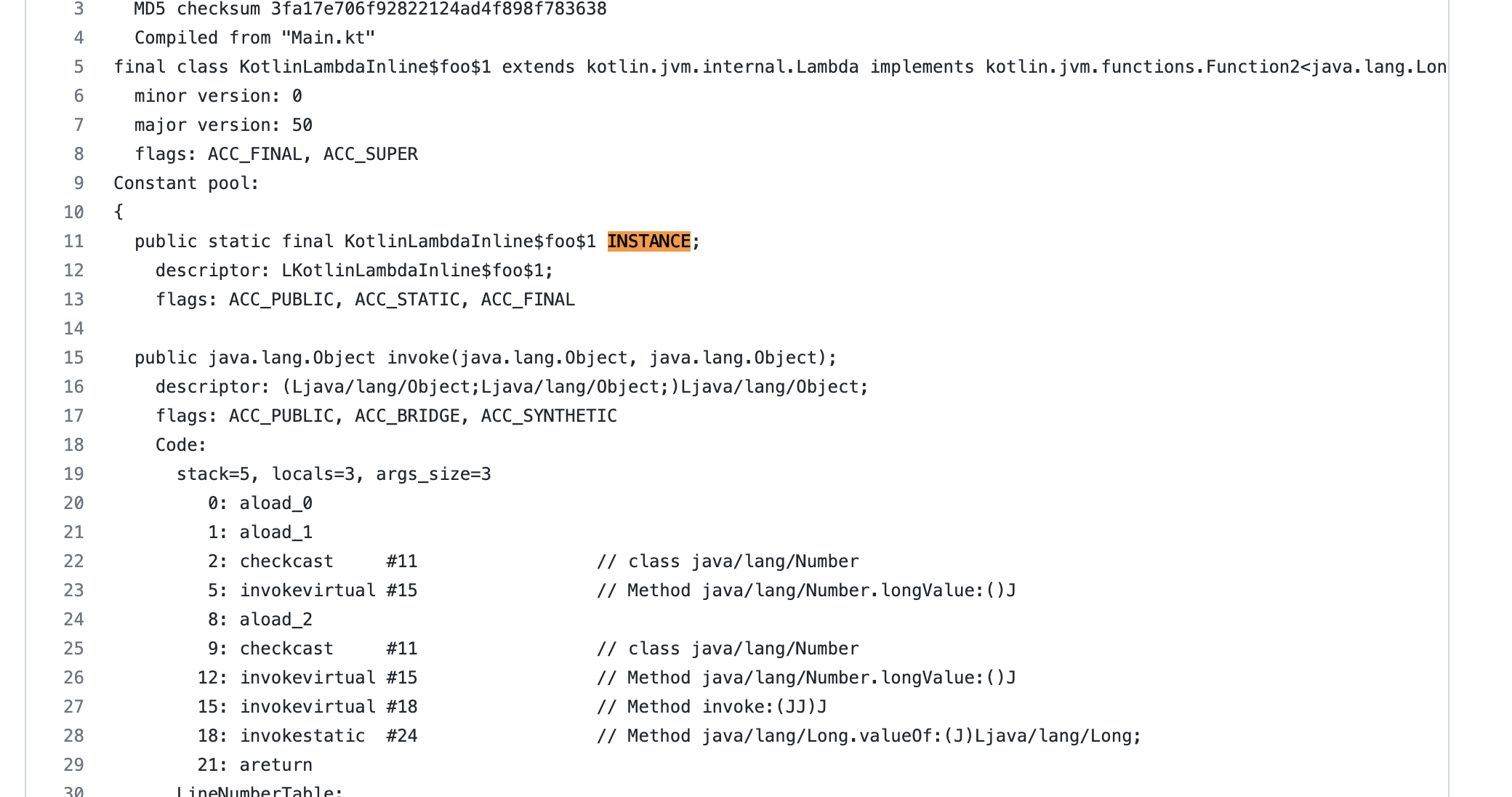

Will generate bytecode like : https://gist.github.com/lfkdsk/41fe56a59365ad73cf430c6ef94e91df

RewriteKotlinSingletonInstancePass will remove these singleton instance in some cases.

Optimization

Optimize Kotlin non-capturing Lambda · facebook/redex@1da6807 This pass will remove INSTANCE in following several conditions.

  • Single use for the instance field
  • Anonymous class is final
  • Anonymous class has single method
  • method does not have any side effects
  • Anonymous class does not have any ifields This would allow subsequent passes to optimize it.

Step 1: Collect Kotlin Lambda INSTANCE Usage

Collect Kotlin noncapturing Lambda which would have an INSTANCE field of the same type and is initialized in . Collect all such Lambda. Focus on following closure :

  walk::parallel::classes(scope, [&](DexClass* cls) {
    if (!can_rename(cls) || !can_delete(cls)) {
      return;
    }
    // has instance field just check field name == 'INSTANCE'
    auto instance = has_instance_field(cls, m_instance);
    if (!instance) {
      return;
    }
    // another closure check cls has side effects.
    if (do_not_consider_type(cls)) {
      return;
    }
    if (concurrent_instance_map.count(instance)) {
      return;
    }
    std::set<std::pair<IRInstruction*, DexMethod*>> insns;
    concurrent_instance_map.emplace(instance, insns);
  });

Check side effects:

  auto iterable = cfg::InstructionIterable(*cfg);
  side_effects::Summary summary(side_effects::EFF_NONE, {});
  side_effects::InvokeToSummaryMap summary_map;

  for (auto it = iterable.begin(); it != iterable.end(); it++) {
    auto insn = it->insn;
    if (insn->opcode() != OPCODE_INVOKE_DIRECT) {
      continue;
    }
    // Check lambda-init in bytecode
    if (safe_base_invoke.count(insn->get_method())) {
      summary_map.emplace(insn, summary);
      continue;
    }
  }

  reaching_defs::MoveAwareFixpointIterator reaching_defs_iter(*cfg);
  reaching_defs_iter.run({});

  local_pointers::FixpointIterator fp_iter(*cfg);
  fp_iter.run({});

  auto side_effect_summary =
      side_effects::SummaryBuilder(summary_map,
                                   fp_iter,
                                   code,
                                   &reaching_defs_iter,
                                   /* analyze_external_reads */ true)
          .build();

  return side_effect_summary.is_pure();

Step 2: Remove escaping instance

Filter out any INSTANCE that might escape and whose use we might not be able to track.

              // If there is more SPUT otherthan the initial one.
              if (opcode::is_an_sput(insn->opcode())) {
                if (method::is_clinit(method) &&
                    method->get_class() == field->get_type()) {
                  continue;
                }
                // Erase if the field is written elsewhere.
                concurrent_instance_map.erase(field);
                continue;
              }

Erase from map if this field be visited multi-times except cinit function.

Step 3: do tranformer

  1. Remove INSTANCE from class
      if (method::is_clinit(meth)) {
        cfg::ScopedCFG cfg(meth->get_code());
        cfg::CFGMutation m(*cfg);
        TRACE(KOTLIN_INSTANCE, 5, "%s <clinit> before\n%s", SHOW(cls),
              SHOW(*cfg));
        auto iterable = cfg::InstructionIterable(*cfg);
        for (auto insn_it = iterable.begin(); insn_it != iterable.end();
             insn_it++) {
          auto insn = insn_it->insn;
          if (!opcode::is_an_sput(insn->opcode()) ||
              insn->get_field() != field) {
            continue;
          }

          m.remove(insn_it);
          stats.kotlin_instance_fields_removed++;
        }
  1. Convert INSTANCE read to new instance creation
        auto move_result_it = cfg->move_result_of(insn_it);
        IRInstruction* new_isn = new IRInstruction(OPCODE_NEW_INSTANCE);
        new_isn->set_type(cls->get_type());
        IRInstruction* mov_result =
            new IRInstruction(IOPCODE_MOVE_RESULT_PSEUDO_OBJECT);
        mov_result->set_dest(move_result_it->insn->dest());
        IRInstruction* init_isn = new IRInstruction(OPCODE_INVOKE_DIRECT);
        init_isn->set_method(init)->set_srcs_size(1)->set_src(
            0, move_result_it->insn->dest());
        m.replace(insn_it, {new_isn, mov_result, init_isn});
        m.remove(move_result_it);
